ANEST IWATA SOUTHEAST ASIA Co., Ltd.
Our Japanese-standard quality products

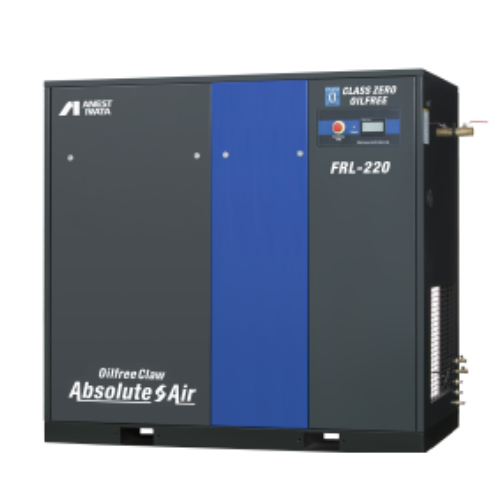

More efficient, environment friendly and easy to use. The Absolute Air compressor provides clean air while meeting all the needs that an oil-free compressor is required to satisfy. The compressor has uniquely shaped claws in the main unit to achieve the highest level of efficiency in this range. What’s more, the air-cooled two-stage compression mechanism and the latest control method offer improved durability and energy-saving performance.
These remarkable features make Absolute Air an ultimate oil-free compressor.
TÜV (Independent third party test house) has just certified that air quality from oilfree claw compressors and oilfree scroll compressors are in conformity with “Class 0 (ISO8573-1:2010[-:-:0])“.
ANEST IWATA is able to supply high quality air to the application where oil contents are to be totally removed.
Product Detail
| Model | Motor rated output (kW（HP)) | Working Pressure (MPa) | FAD (m3/min) | External dimentions (mm) | Noise level (dB（A)) | Control system |
|---|---|---|---|---|---|---|
| FRL-220 | 22kW(3OHP) | 0.7 | 3.7 | 1,760X1,000X1,656 | 65 | Load / Unload |
| FRL-370 | 37kW(50HP) | 0.7 | 5.6 | 1,760X1,000X1,656 | 68 | Load / Unload |
| FRV-220 | 22kW(30HP) | 0.7 | 3.7 | 1,760X1,000X1,656 | 65 | Inverter |
| FRV-370 | 37kW(50H P) | 0.7 | 5.6 | 1,760X1,000X1,656 | 68 | Inverter |
※ Air delivery is discharged air volume at 0.7MPa converted into atmospheric pressure. Contact to us for guaranteed value.
※ Noise level is measured in an anechoic room at thedistance of 1.5m from front, and hight of 1.0m, at 0.7Mpa, full load operation.
※ Dimensions are outer size. excluding protrusions such as ball valve.
※ Specifications are subject to change without any notice.
