ANEST IWATA SOUTHEAST ASIA Co., Ltd.
Our Japanese-standard quality products

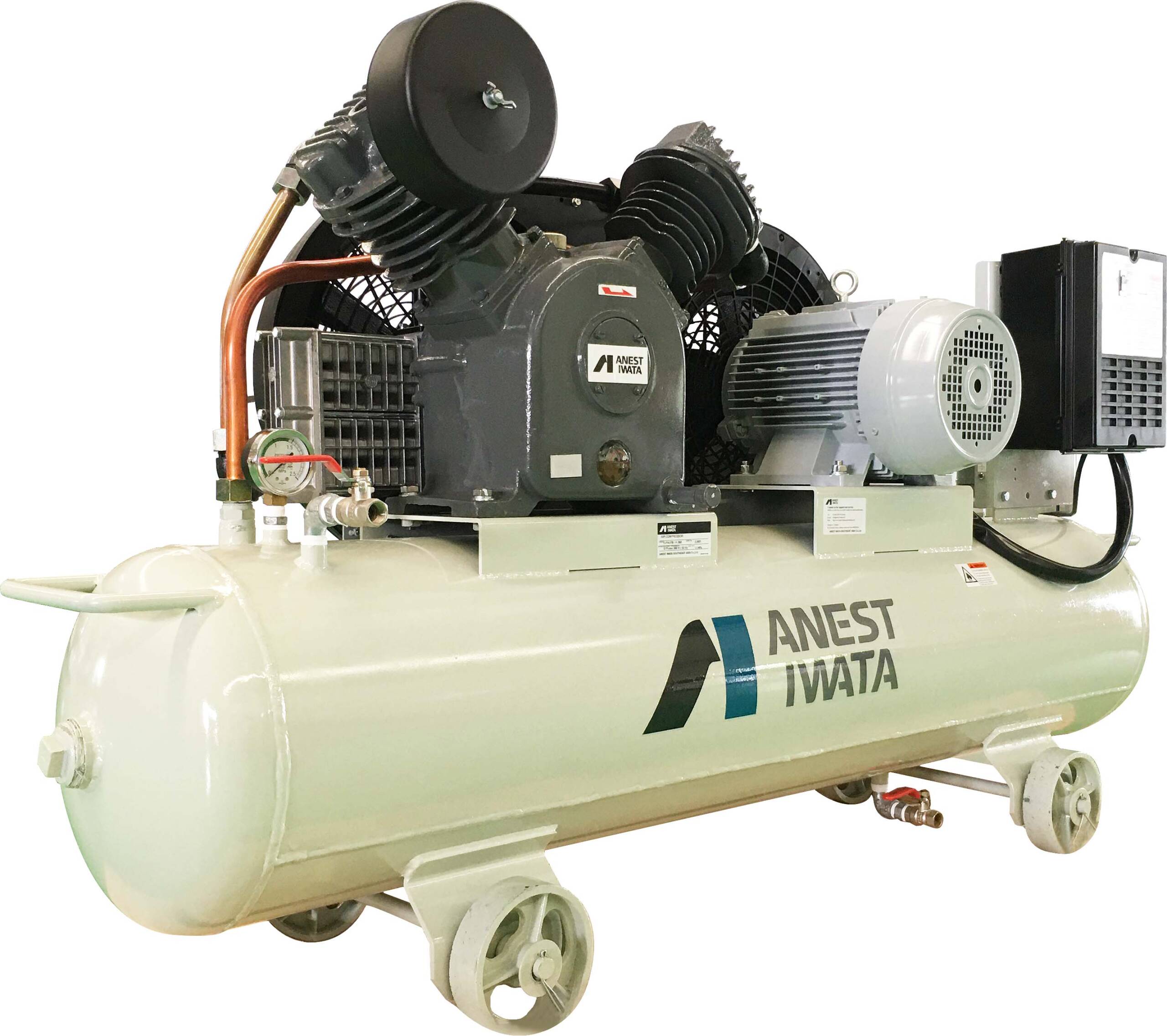

Oil injection reciprocating compressor are using pressure switch control. They are easy to use and economical. application in for general industry
Our missions are to keep up with ever-changing work styles and continue to provide high-quality products that are not only user friendly but also environment friendly. By doing so, we help customers realize new work styles.
Product Detail
| Model | Motor rated output (kW（HP)) | Working Pressure (MPa) | FAD (L/min) | External dimentions (mm) | Noise level (dB（A)) |
|---|---|---|---|---|---|
| TLPA22B-10 | 2.2 (3HP) | 0.8-1.0 | 255 | 1540x420x755 | 69 |
| TLPA37B-10 | 3.7 (5HP) | 0.8-1.0 | 400 | 1540x420x840 | 72 |
| TLPA55B-10 | 5.5 (7.5HP) | 0.8-1.0 | 630 | 1689x576x1000 | 71 |
| TLPA75B-10 | 7.5 (10HP) | 0.8-1.0 | 855 | 1689x576x1160 | 73 |
| TLPA110B-10 | 11 (15HP) | 0.8-1.0 | 1285 | 1689x664x1160 | 76 |
| TLPA22B-14 | 2.2 (3HP) | 1.15-1.4 | 235 | 1540x420x755 | 67 |
| TLPA37B-14 | 3.7 (5HP) | 1.15-1.4 | 390 | 1540x420x840 | 71 |
| TLPA55B-14 | 5.5 (7.5HP) | 1.15-1.4 | 590 | 1689x595x1080 | 72 |
| TLPA75B-14 | 7.5 (10HP) | 1.15-1.4 | 755 | 1689x595x1130 | 74 |
| TLPA110B-14 | 11 (15HP) | 1.15-1.4 | 1125 | 1689x595x1130 | 77 |
