Spray Booth

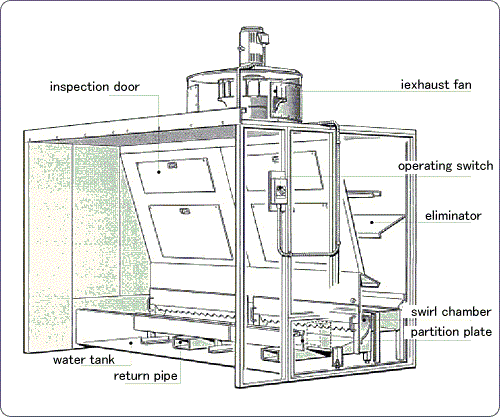

Options for the Venturi Spray Booth VB Type

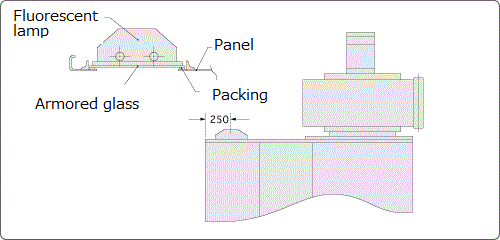

This booth is the standard Venturi booth (7 models) equipped with normal fluorescent lights.

Fluorescent Light Specs (made by Mitsubishi Electric)

Switch and Wire Specs (for fluorescent lights)

Switch: Box Switch
Wire: Vinyl Cab Tire Cable

All the electric components of the above VBL model are of the safety-enhanced explosion-proof specifications.

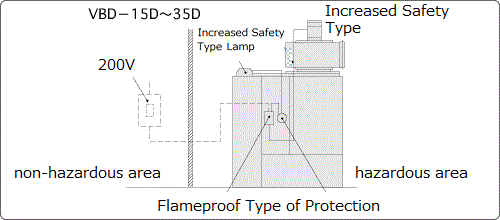

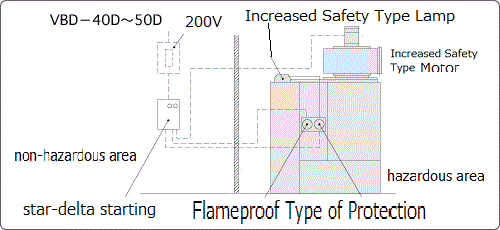

Note that the VB-40D and 50D models require that cabling for the star delta start panel, motor, and hand switch be done by the customer (dotted lines in the figure below).

This booth is the standard Venturi booth (7 models) with its hood located 500 mm higher. The exhaust fan is of the standard specifications.

Dimensions(mm)

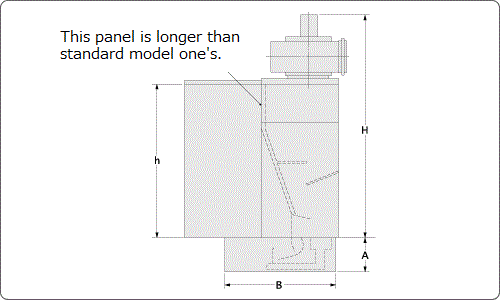

This booth is of the pit type with the water tank removed from the standard Venturi booth (7 models), enabling suction from the floor. Note that the pit installation work must be done by the customer.

Dimensions(mm)

Exhaust Fan Orientation

The exhaust fan of the Venturi booth can be oriented not only in the standard direction but also in the directions shown in Figures (1) to (3). Note that the dimensions differ depending on the orientation.

Dimensions(mm)

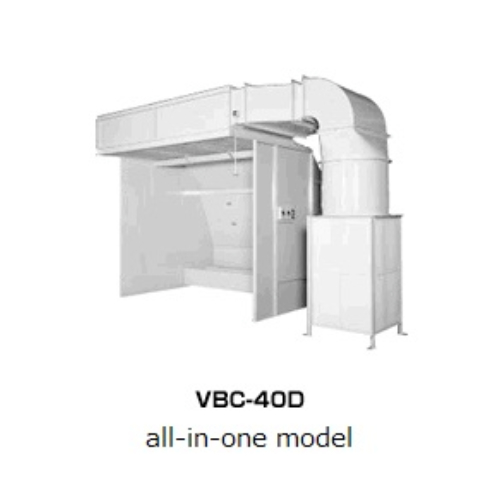

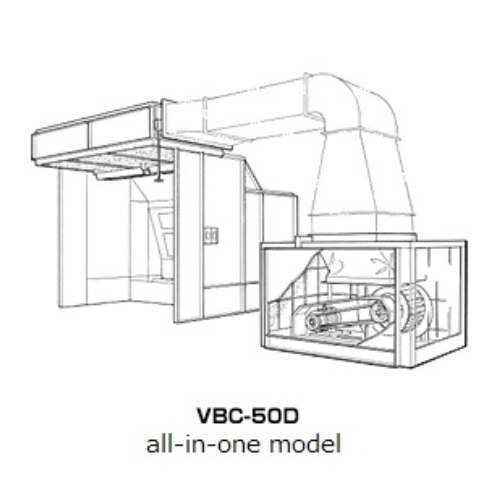

Air Balance Booth Baffle Booth VBC Type

Booth/Air Supply-Combined type

• The chamber filter area is large enough to provide a gentle blow at air flow rates from 1.0 to 1.5 m/s.
• The chamber filter can be replaced from the floor side, resulting in improved maintainability.
• With the chamber sticking out from the booth main body by 500 mm, the booth requires less floor space to install.

Option Specs

• Low-Noise Sirocco Fan
• Flow Rate Adjusting Inverter
• Warming Device (Gas Steam)

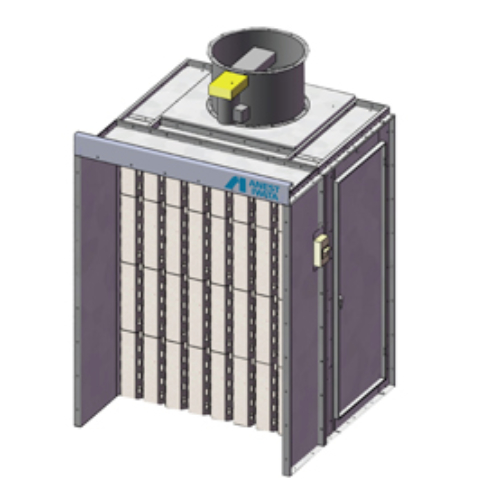

Dry Coating Booth BB Type

No Need to worry about freezing because water is not used.

Applications

• Suppression of paint mist scattering
• Suitable for use in places where drainage treatment or piping is difficult to accomplish

Newly developed V-type baffle plates (primary filter) and dedicated mounting plate offer improved maintainability.

• The booth uses newly developed baffle plates and a dedicated mounting plate (patent pending for both). The number of baffle plates has been reduced to about a half, and the mounting plate is less prone to paint adhesion. These allow easy replacement of the parts.

All the models suck air from across the outlet to achieve better suction performance.

• Even those models having an expanded hood with an outlet that is 0.5 m wider suck air from across the outlet, which enables them to suck air uniformly.

Large cleaning/inspection door that can be attached on either side

• The booth has a cleaning/inspection door with a wider opening than that of the previous models. This gives easier access to the inside of the booth during cleaning.

Fan guard set as a standard component

• The booth has a fan guard set as a standard component to ensure safety during maintenance work inside.

Options added to make the booth even easier to use

• In addition to the existing BBL (normal fluorescent light model), BBD (safety-enhanced explosion-proof model), BBR (rear exhaust model), and BBH (high ceiling model), a manometer (differential pressure gauge) set for easily judging when to replace the primary and secondary filters can be added to all the models.
  * The main body is changed from the coated one to an uncoated one (made of aluminum-zinc alloy-coated steel sheet).

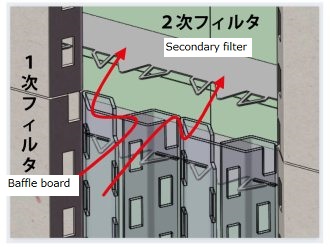

The V-type baffle plate serves as the primary filter that collects sprayed paint mists at the time of impact.
The V-type baffle plate has its surface specially processed to enhance collection efficiency, and its internal structure causes most of paint mists to be collected on the surface.
The secondary filter collects the remaining few paint mists that fail to be collected by the baffle plate.

Model with Normal Fluorescent Lights

This booth is the standard baffle booth (7 models) equipped with normal fluorescent lights.

BBL Models with Fluorescent Lights

* Caution: The BB-10E model is not equipped with fluorescent lights

Safety-Enhanced Explosion-Proof Models (with fluorescent lights)

All the electric components of the above BBL model are of the safety-enhanced explosion-proof specifications.
Note that the primary wiring and wiring for the cover switch and other components must be done by the customer (dotted lines in the figure below).

BBD Model Specs

Rear Exhaust Models

This booth is the standard baffle booth (8 models) with a duct bent by 90 degrees for rear side exhaust. The exhaust duct can be laid straight to the rear.

BBR Model Dimensions (mm)

High Ceiling Models

This booth is the standard baffle booth (7 models) with its hood located 500 mm higher. The exhaust fan is of the standard specifications.

BBH Model Dimensions (mm)

*Caution: The BB-10E model does not have a high ceiling.

A manometer (filter differential pressure gauge) for measuring the filter differential pressure can be attached to all of the standard and optional models. Since the manometer has a pointer, you can identify when to replace the filter at a glance by setting the relevant value on the pointer.

< Types of Paint That Should Not Be Used >

Some types of paint may ignite spontaneously when their paint mists adhere to and accumulate on the filter, baffle plate, etc. Do not use these types of paint for the baffle booth.

• Oil-based paint using boiled oil or linseed oil as solvent
• Oxidized polymer paint
  Paint with a mixture of hardener, promoter, etc.
• Fast-drying phthalate paint
  Paint containing styrene to promote the drying process
• Other types of paint that may ignite spontaneously
  If you remove baffle plates smeared with such paint and leave them piled up, the paint may ignite spontaneously. Submerge the plates in water immediately, and scrap them as industrial waste.

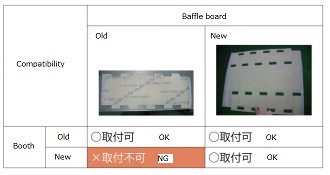

< Baffle Plate Compatibility >

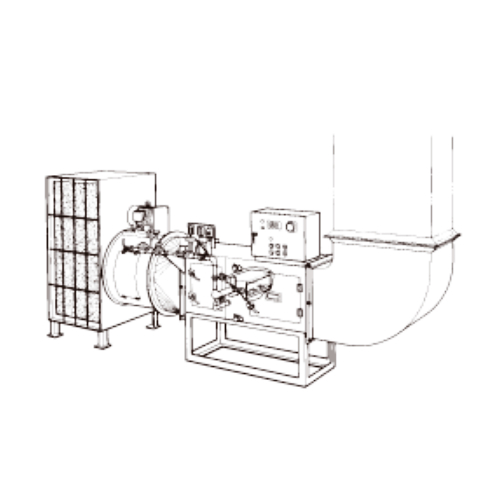

Supply Air Warming Device (Option)

Ensures stable coating quality with no rough coating film throughout the year.

• Ensures stable coating quality throughout the year.
• Protects the health of the painter.

• Two types of warming device are available: heater type and steam type.
• The device allows you to keep the coating temperature in the same condition throughout the year and obtain stable coating quality with no rough coating film.
• The device warms the work site in the winter and is expected to keep painters healthy and improve work efficiency.

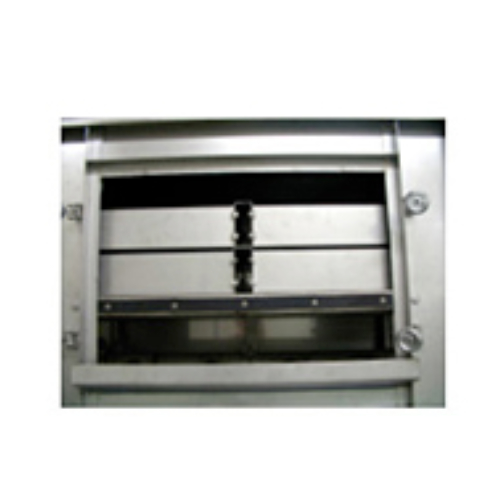

Hybrid Scrubber Booth

Most powerful coating booth that minimizes paint mist exhaust.

• Paint Mist Collection

• The three-step mist collection system realizes space-saving, highly efficient mist collection.
• Most powerful coating booth that minimizes paint mist exhaust
• Extremely high collection efficiency
• 99.5% for urethane paint (reference value) * Reference: 93% for our VB booth
