ANEST IWATA SOUTHEAST ASIA Co., Ltd.
Our Japanese-standard quality products.
A diverse selection of Japanese-standard coating and spraying equipment suitable for general industry work, automobile parts manufacturing, electrical devices manufacturing, car body paint and spray works are available here. Our products help customers manufacture goods to their anticipated standards while having good quality work piece and being environment-friendly.
Product Detail

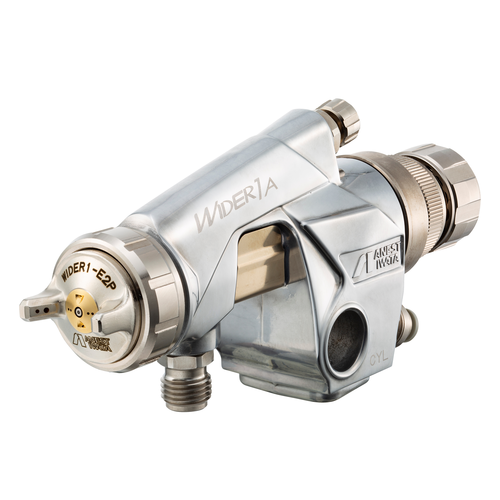

WIDER1A & WIDER2A
| Model |  | Type of feed | |  |  | Connection |  |  |
|---|---|---|---|---|---|---|---|---|
| WIDER1A-08E2P | 0.8 | Small | 0.29 | 150 | 190 | [Air] Atomizing air (CAP) Φ8 Operating air (CYL) Φ6 [Fluid] G1/4 male | WIDER1-E2P | 400 |
| WIDER1A-10E2P | 1.0 | 200 | 220 | |||||
| WIDER1A-10E1 | 100 | 140 | WIDER1-E1 | |||||
| WIDER1A-13H2 | 1.3 | 250 | 230 | WIDER1-H2 | ||||
| WIDER1A-15H2 | 1.5 | 270 | 255 | |||||
| WIDER1A-05R | 0.5 | 20 | 35 | WIDER1-05R | ||||
| WIDER2A-12G2P | 1.2 | Large | 0.29 | 500 | 400 | Air] Atomizing air (CAP) Φ8 Operating air (CYL) Φ6 [Fluid] G3/8 male | WIDER2-G2P | 420 |
| WIDER2A-15K2 | 1.5 | 270 | 340 | WIDER2-K2 | ||||
| WIDER2A-20R2 | 2.0 | 400 | 320 | WIDER2-R2 | ||||
| WIDER2A-25W1 | 2.5 | 500 | 330 | WIDER2-W1 |
＊Spraying air pressure is the spray gun inlet pressure when the piston is withdrawn to allow air flow
GFA-200-084P
GFA-600-122P
GFA-E600-134X (Electrostatic)
| Model | | | | |
|---|---|---|---|---|
| GFA-200-084P | 0.8 | 30-100 | 90 | C22 |
| GFA200S10C22-08 | ||||
| GFA200S2BX6-10 | 1.0 | 100-250 | 220 | X6 |
| GFA-600-122P | 1.2 | 100-200 | 160 | G21 |
| GFA-E600-134X | 1.3 | 100-200 | 150 | GFA-E600-H21 |
*GFA-E600-134X use with controller E-SC12BH
SGA-3
WIDER1A
RK1-A05-0690
| Model | Type of feed | | | | |
|---|---|---|---|---|---|
| SGA-3 | Compact | 1.0 | - | - | E1 |
| WIDER1A-08E2P(V) | Small | 0.8 | 150 | 190 | WIDER1-E2P |
| WIDER1A-10E1(V) | 1.0 | 100 | 140 | WIDER1-E1 | |
| WIDER1A-10E2P(V) | 200 | 220 | WIDER1-E2P | ||
| WIDER1A-13H2(V) | 1.3 | 250 | 230 | WIDER1-H2 | |
| WIDER1A-05R(V) | Small (round pattern) | 0.5 | 20 | 35 | - |
| WIDER2A-12G2P(V) | Large | 1.2 | 500 | 400 | WIDER2-G2P |
| WIDER2A-15K2(V) | 1.5 | 270 | 340 | WIDER2-K2 | |
| WIDER2A-20R2(V) | 2.0 | 400 | 320 | WIDER2-R2 | |
| WIDER2A-25W1(V) | 2.5 | 500 | 330 | WIDER2-W1 | |
| ZP2-A20 | Large (ceramic) | 2.0 | 760 | 370 | ZP2-R1Z |
| ZP2-A25 | 2.5 | ||||
| RK1-A06-12180 | Internal coating | 0.6 | 17 | 48 | - |
| RK1-A05-09150 | 0.5 | 9 | 36 | - | |
| RA1-A05-0690 | 6 | 32 | - |

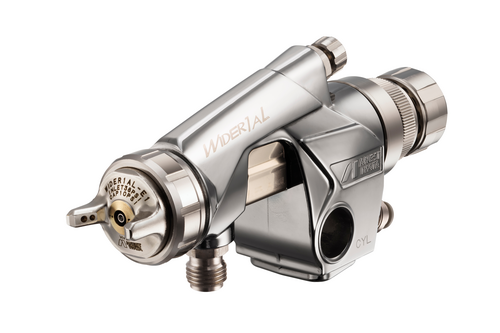

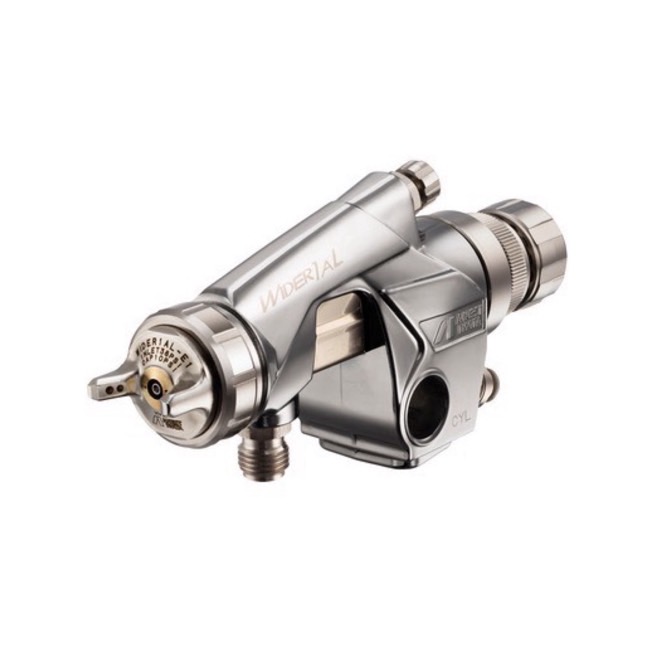

WIDER1AL
| Model | Type of feed | | | |
|---|---|---|---|---|
| WIDER1AL-10E1 | Small | 1.0 | 150 | E1 |
| WIDER1AL-10E1V | ||||
| WIDER2AL-12G2 | Large | 1.2 | 500 | G2 |

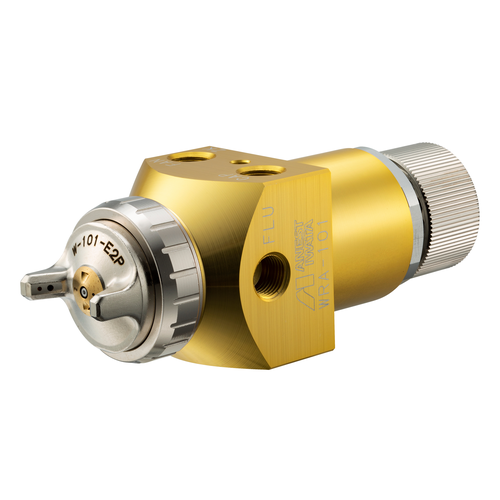

WRA-101
LRA-200
| Model | Type of feed | | | | |
|---|---|---|---|---|---|
| WRA-101-082P | Small | 0.8 | 150 | 190 | E2P |
| WRA-200-122P | Large | 1.2 | 500 | 400 | G2P |
| LRA-200-122P | Large (round pattern) | 300 | G2P |
RK1-A05-0690
| Model | Length of extension nozzle (A) | Pipe dia | Pattern curve degree(°) |
|---|---|---|---|
| RK1-A06-12180 | 180 mm | 12 mm | about 19° |
| RK1-A05-09150 | 150 mm | 9 mm | about 14° |
| RK1-A05-0690 | 90 mm | 6 mm | about 4° |
