บริษัท อาเนส อิวาตะ เซาท์อีสต์ เอเซีย จำกัด
สินค้าคุณภาพสูงที่สามารถตอบโจทย์ทุกความต้องการ
อุปกรณ์การพ่นสีและเคลือบพื้นผิวมาตรฐานจากประเทศญี่ปุ่น ที่มีความหลากหลาย สามารถตอบโจทย์การพ่นสีและงานเคลือบผิวได้อย่างครบครัน ไม่ว่าจะเป็นงานอุตสาหกรรมทั่วไป งานผลิตชิ้นส่วนรถยนต์ งานผลิตอุปกรณ์เครื่องใช้ไฟฟ้าหรืองานตามอู่พ่นสีรถยนต์ ซึ่งสินค้าของเราสามารถช่วยให้ลูกค้าผลิตชิ้นงานให้ตรงตามมาตรฐาน สวยงาม และยังเป็นมิตรต่อสิ่งแวดล้อมอีกด้วย
Product Detail
DDP-70B

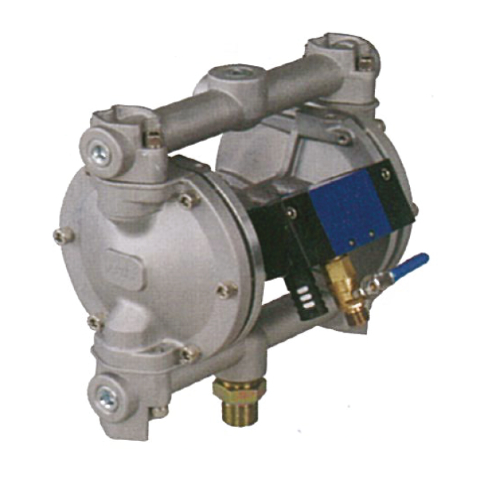

DDP-90E
DDP-120B
DDP-160D

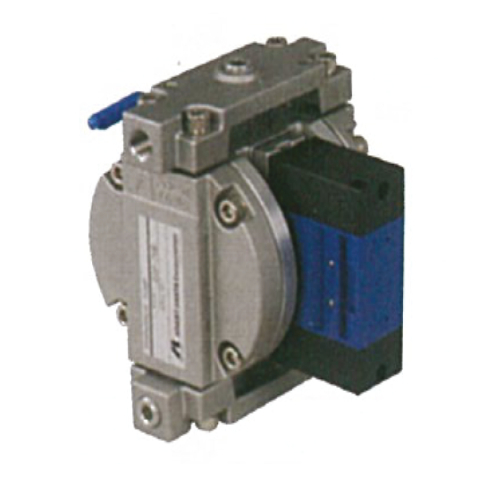

DDP-70BN
DDP-90EN
DDP-120BN

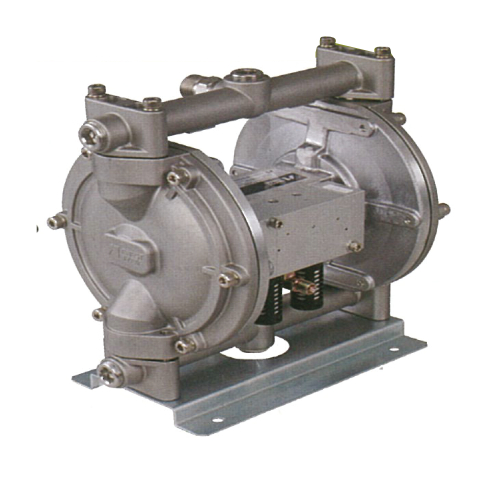

DDP-160DN
| Model | DDP-70B | DDP-70BN | DDP-90E | DDP-90EN | DDP-120B | DDP-120BN | DDP-160D | DDP-160DN |
|---|---|---|---|---|---|---|---|---|
| Material of wetted parts | Aluminum | Stainless | Aluminum | Stainless | Aluminum | Stainless | Aluminum | Stainless |
| Pressure ratio | 1 : 1 | 1 : 1 | 1 : 1 | 1 : 1 | ||||
| Adjustable pressure range | 0.15~0.7 MPa | 0.15~0.7 MPa | 0.15~0.7 MPa | 0.15~0.85 MPa |
||||
| Paint output/cycle | 20 ml/cycle | 50 ml/cycle | 150 ml/cycle | 330 l/min | ||||
| Max. Cycle No. | 300 cycle/min | 200 cycle/min | 200 cycle/min | 200 cycle/min |
||||
| Max. Paint output | 6 l/min | 10 l/min | 30 l/min | 66 l/min |
||||
| Normal paint output (30cycle/min) | 0.6 l/min | 1.5 l/min | 4.5 l/min | 10 l/min |
||||
| Max. Paint output | 60s/NK-2 (190cPs) | 100s/NK-2 (300cPs) | 100s/NK-2 (300cPs) | 3,000cPs | ||||
| Paint temperature | 5~40 °c | 5~40 °c | 5~40 °c | 5~40 °c | ||||
| Air inlet | CG1/4B (PF1/4 male) | G1/4B (PF1/4 male) | G1/4B (PF1/4 male) | G1/4B (PF1/4 male) |
||||
| Paint inlet | Rc1/4 (PF1/4 female) | G1/2B (PF1/2 male) | G1/2B (PF1/2 male) | G3/4B (PF3/4 male) |
||||
| Paint outlet | Rc1/4 (PT1/4 female) | Rc3/8 (PT3/8 female) | Rc3/8 (PT3/8 female) | Rc3/4 (PT3/4 male) | ||||
| Mass | 2 kg | 3.2 kg | 3.1 kg | 5 kg | 4 kg | 7.2 kg | 11 kg | 16.5 kg |
| Dimension (L x W x H) | 173 x 113 x143 mm | 186 x 213 x 220 mm | 207 x 223 x 274 mm | 210 x 290 x 320 mm | ||||
DPS-70C
DPS-70TC
DPS-90E

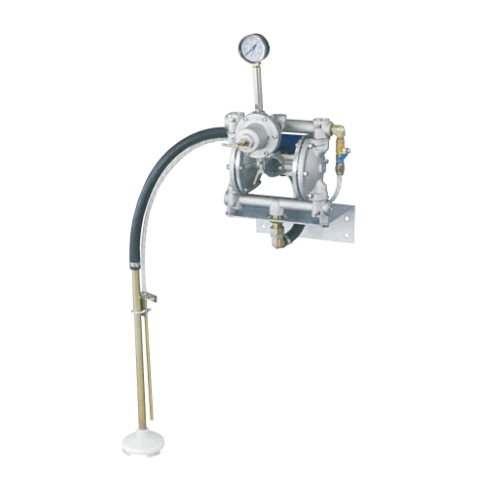

DPS-904E
HDP-705C*

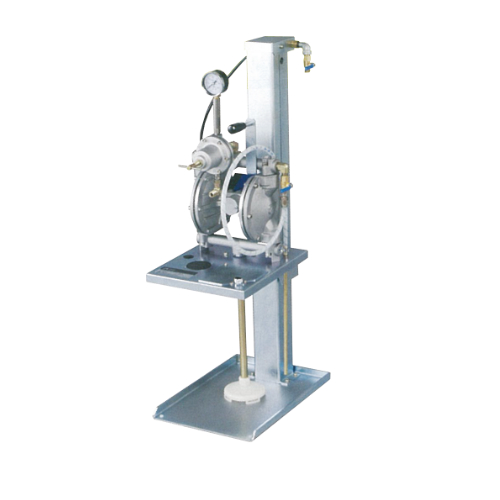

DPS-120LB
| Type | Pail-mount | Transfer pump for pail | Stand Mount | Wall Mount | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pump set Model | DPS-70C | DPS-70TC | DPS-90E | DPS-90EN | DPS-120B | DPS-120BN | DPS-704C | DPS-704CN | DPS-904E | DPS-904EN | DPS-120B | DPS-1204BN | |
| Diaphragm Pump | Model | DDP-70B | DDP-90E | DDP-90EN | DDP-120B | DDP-120BN | DDP-704C | DDP-704CN | DDP-904E | DDP-904EN | DDP-120B | DDP-1204BN | |
| Material of wetted parts | Aluminum | Aluminum | Stainless | Aluminum | Stainless | Aluminum | Stainless | Aluminum | Stainless | Aluminum | Stainless | ||
| Normal paint output (30cycle/min) | 0.6 l/min | 1.5 l/min | 4.5 l/min | 0.6 l/min | 1.5 l/min | 4.5 l/min | |||||||
| Max. Paint output | 6.0 l/min | 10.0 l/min | 10.0 l/min | 6.0 l/min | 10.0 l/min | 30.0 l/min | |||||||
| Adjustable pressure range | 0.15 ~ 0.7MPa | 0.15 ~ 0.7MPa | 0.15 ~ 0.7MPa | ||||||||||
| Paint Regulator | Model | PR-5B | not included | PR-5B | PR-5BN | PR-5B | PR-5BN | PR-5B | PR-5BN | PR-5B | PR-5BN | PR-5B | PR-5BN |
| Material of wetted parts | Aluminum | - | Aluminum | Stainless | Aluminum | Stainless | Aluminum | Stainless | Aluminum | Stainless | Aluminum | Stainless | |
| Adjustable pressure range | 0~0.6 MPa | - | 0~0.6 MPa | 0~0.6 MPa |
|||||||||
| Max Flow | 2.0 l/min | 2.0 l/min | |||||||||||
| Max. Paint viscosity | 60s/NK-2 190cPs | 100s/NK-2 300cPs | 60s/NK-2 190cPs | 100s/NK-2 300cPs |
|||||||||
| Paint temperature | 5~40 °C | 5~40 °C | 5~40 °C |
||||||||||
| Air inlet/Paint outlet | G1/4B (PF1/4male) | G1/4B (PF1/4male) | G1/4B (PF1/4male) | ||||||||||
| Paint filter | 50 mesh | not included | 50 mesh | 50 mesh | |||||||||
| Dimensions (LxWxH) | 173x393x663 mm | 173x213x515 mm | 360x348x781mm | 366x357x823mm | 173x307x364mm | 356x269x449mm | 356x269x491mm | ||||||
| Mass | 4 kg | 3 kg | 7 kg | 9 kg | 8 kg | 11 kg | 4 kg | 5 kg | 6 kg | 7 kg | 6 kg | 10 kg | |
| Type | Hopper | Elevator Stand Type (Pail) | ||||||
|---|---|---|---|---|---|---|---|---|
| Pump set Model | HDP-705C | DPS-70LC | DPS-70LCN | DPS-90LE | DPS-90LEN | DPS-120LB | DPS-120LEN | |
| Diaphragm Pump | Model | DDP-70B | DDP-70B | DDP-70BN | DDP-90E | DDP-90EN | DDP-120B | DDP-120BN |
| Material of wetted parts | Aluminum | Aluminum | Stainless | Aluminum | Stainless | Aluminum | Stainless | |
| Normal paint output (30cycle/min) | 0.6 l/min | 0.6 l/min | 1.5 l/min | 4.5 l/min |
||||
| Max. Paint output | 0.6 l/min | 0.6 l/min | 10.0 l/min | 30 l/min |
||||
| Adjustable pressure range | 0.15 ~ 0.7 MPa | |||||||
| Paint Regulator | Model | PR-5B | PR-5B | PR-5BN | PR-5B | PR-5BN | PR-5B | PR-5BN |
| Material of wetted parts | Aluminum | Aluminum | Stainless | Aluminum | Stainless | Aluminum | Stainless | |
| Adjustable pressure range | 0~0.6 MPa | 0~0.6 MPa | ||||||
| Max Flow | 2.0 l/min | 2.0 l/min | ||||||
| Max. Paint viscosity | 60s/NK-2 190cPs | 60s/NK-2 190cPs | 100s/NK-2 300cPs |
|||||
| Paint temperature | 5~40 °C | 5~40 °C | ||||||
| Air inlet/Paint outlet | G1/4B (PF1/4male) | G1/4B (PF1/4male) |
||||||
| Paint filter | 50 mesh | 50 mesh |
||||||
| Dimensions (LxWxH) | 410x226x446 mm | 390x260x823 mm (Elevated hight 1,120mm) | 390x260x823 mm (Elevated hight 1,174mm) | 390x260x823 mm (Elevated hight 1,211mm) |
||||
| Mass | 8 kg | 16 kg | 18 kg | 17 kg | 18 kg | 18 kg | 22 kg | |
DPS-702C
Pail Tank Mount (20l)
DPS-902E
Pail Tank Mount
| Type | Elevator Stand Type | Pail Tank Mount (20 l) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pump set model | #colspan# | DPS-70LPC | DPS-70LPCN | DPS-90LPE | DPS-90LPEN | DPS-120LPB | DPS-120LPEN | DPS-702C | DPS-702CN | DPS-902E | DPS-902EN | DPS-1202B | DPS-1202BN |
| Diaphragm Pump | Model | DDP-70B | DDP-70BN | DDP-90E | DDP-90EN | DDP-120B | DDP-120BN | DDP-70B | DDP-70BN | DDP-90E | DDP-90EN | DDP-120B | DDP-120BN |
| Material of wetted parts | Aluminum | Stainless | Aluminum | Stainless | Aluminum | Stainless | Aluminum | Stainless | Aluminum | Stainless | Aluminum | Stainless | |
| Normal paint output (30cycle/min) | 0.6 l/min | 1.5 l/min | 4.5 l/min | 0.6 l/min | 1.5 l/min | 4.5 l/min |
|||||||
| Max. Paint output | 6.0 l/min | 10.0 l/min | 30 l/min | 6.0 l/min | 10.0 l/min | 30 l/min | |||||||
| Adjustable pressure range | 0.15~0.7 MPa | 0.15~0.7 MPa | |||||||||||
| Paint Regulator | Model | PR-5B | PR-5BN | PR-5B | PR-5BN | PR-5B | PR-5BN | PR-5B | PR-5BN | PR-5B | PR-5BN | PR-5B | PR-5BN |
| Material of wetted parts | Aluminum | Stainless | Aluminum | Stainless | Aluminum | Stainless | Aluminum | Stainless | Aluminum | Stainless | Aluminum | Stainless | |
| Adjustable pressure range | 0~0.6 MPa | 0~0.6 MPa |
|||||||||||
| Max Flow | 2.0 l/min | 2.0 l/min | |||||||||||
| Max. Paint viscosity | 60s/NK-2 190cPs | 100s/NK-2 300cPs | 60s/NK-2 190cPs | 100s/NK-2 300cPs |
|||||||||
| Paint temperature | 5~40 °C | 5~40 °C | |||||||||||
| Air inlet/Paint outlet | G1/4B(PF1/4male) | G1/4B(PF1/4male) |
|||||||||||
| Paint filter | 50 mesh | 50 mesh | |||||||||||
| Dimensions (LxWxH) | 410x300x823mm (Elevated height 1,120mm) | 410x300x823mm (Elevated height 1,174mm) | 410x300x823mm (Elevated height 1,211mm) | 308x307x689mm | 307x325x687mm | 307x325x729mm | |||||||
| Mass | 18 kg | 19 kg | 18 kg | 21 kg | 19 kg | 23 kg | 5 kg | 6 kg | 6 kg | 8 kg | 7 kg | 11 kg | |
*Remark : Excluded agitator (Agitator is option)
PR-5B
PR-51B
| Model | PR-5B | PR-5BN | PR-51B | PR-5BL | PR-5BLN |
|---|---|---|---|---|---|
| Type | Conventional | Stand | Low pressure and volume | ||
| Material of wetted parts | Aluminum | Stainless | Aluminum | Aluminum | Stainless |
| Pressure range | 0～0.6MPa | 0～0.3MPa |
|||
| Max. flow | 2.0ℓ/min | 1.5ℓ/min | |||
| Max. inlet pressure | 2.5MPa | 0.7MPa | |||
| Paint inlet | G3/8B | ||||
| Paint outlet | G1/4B | ||||
| Dimensions (LxWxH) | 84×165×260mm | 84×141×220mm | 84×165×260mm | ||
| Mass | 850g | 1,020g | 900g | 850g | 1,020g |
| Mounting dimensions | |||||
FCV-3

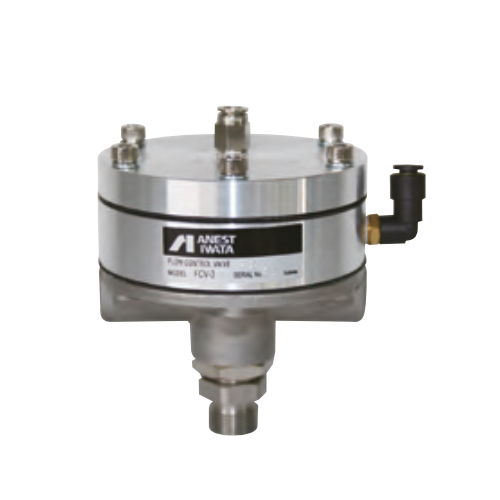

FCV-31
| Model | FCV-3/3N | FCV-31/31N | FCV-31-R4/31N-R4 | FCV-31-R8/31N-R8 |
|---|---|---|---|---|
| Type | Conventional | Drain Valve Unit | Drain Valve unit for use with low outlet pressures. | |
| Material of wetted part | Aluminum／Stainless | Aluminum／Stainless | Aluminum／Stainless | Aluminum／Stainless |
| Control Ratio | 1:1 | 1:1 | 1:4 | 1:8 |
| Optimum paint flow | more than 100mℓ/min | 35～100mℓ/min | 20～50mℓ/min | |
| Pressure range | 0～0.6MPa |
|||
| Max flow | 2.0ℓ/min | |||
| Max. inlet pressure | 2.5MPa | |||
| Air inlet | Rc1/8(PT1/8female) φ6 tube joint | |||
| Paint inlet | G3/8B(PF3/8 male) | |||
| Paint outlet | Rc1/4(PT1/4female)x2 | |||
| Dimensions (LxWxH) | 84×84×106mm | 84×112×112mm | ||
| Mass | 570g ／ 720g | 750g ／ 900g | ||
| Mount dimension front | 2-M5x0.8, deepness 13mm, pitch=20mm |
|||
| Mount dimension back | 2-M5x0.8, deepness 8mm, pitch=22mm | |||
PR-B5B
| Model | PR-B5B | PR-B5BN |
|---|---|---|
| Material of wetted part | Aluminum | Stainless |
| Pressure range | 0～0.6MPa |
|
| Max flow | 2.0ℓ/min | |
| Max primary pressure | 0.6MPa | |
| Paint inlet | G1/4B (PF1 /4 male) | |
| Paint outlet | G3/8B (PF3 /8 male) | |
| Dimensions (LxWxH) | 84×165×260mm | |
| Mass | 850g | 1,020g |
| Mount dimension | 2-M5x0.8, deepness 8mm, pitch=22mm | |
| Model | TJU-221B | TJU-321B |
|---|---|---|
| Material of wetted part | Stainless | |
| Spray gun joint | G1/4 hexagon cup nut (PF1/4 hexagon cup nut) | G3/8 hexagon cup nut (PF3/8 hexagon cup nut) |
| Paint inlet | G1/4B(PF1/4male) |
|
| Paint outlet | G1/4B(PF1/4male) |
|
| Max pressure | 0.69Mp |
|
| Usable model | W-101/LPH-101, W-61/71, WA-101/LPA-101 | W-200/LPH-200, W-77, WA-200/LPA-200 |
| Remarks | Flow control function | |
